Fuzzy Logic: Introduction
- Core Concept: Fuzzy logic is a way to represent variation or imprecision in logic, enabling the use of natural language in approximate reasoning (e.g., "If it is sunny and warm today, I will drive fast").
- Linguistic Variables Examples:
- Temp:
- Cloud Cover:
- Speed:
Crisp (Traditional) Variables
- Definition: Crisp variables represent precise, binary quantities.
- Characteristics:
-
Variables have exact numerical values (e.g., x = 3.1415296).
-
Propositions are strictly True or False (A ∈{0,1}).
-
A statement like "Richard is greedy" is either completely true (1) or completely false (0).
شغل أبيض و أسود بس
-
Fuzzy Sets
- Definition: Fuzzy Sets represent the degree to which a quality is possessed.
- Characteristics:
- Values are in the range of [0, 1].
- Example: Greedy(Richard) = 0.7 (meaning Richard is 70% greedy).
Fuzzy Linguistic Variables
- Definition: These variables use words (linguistic terms) to represent qualities spanning a spectrum.
- Example: Temp: {Freezing, Cool, Warm, Hot}.
Membership Functions
- Concept: A membership function determines the "Degree of Truth" or "Membership" of a crisp input value within a fuzzy set.
- Example Calculation: A temperature of 36 F° might be determined to be 70% Freezing (0.7) and 30% Cool (0.3).
Fuzzy Logic Connectives
- Purpose: To use fuzzy membership functions in predicate logic.
- Connectives: Fuzzy Conjunction (
, like AND) and Fuzzy Disjunction ( , like OR) operate on degrees of membership in fuzzy sets.
Fuzzy Disjunction (
- Rule:
. - Interpretation: The resulting quality C (the disjunction of A and B) is equal to the maximum membership value of A or B.
Fuzzy Conjunction (
- Rule:
. - Interpretation: The resulting quality C (the conjunction of A and B) is equal to the minimum membership value of A or B.
Example: Fuzzy Conjunction
- Problem: Calculate
given that A is .4 and B is 20. - Process:
- Determine degrees of membership for A and B (e.g., A = 0.7, B = 0.9).
- Apply Fuzzy AND:
.
Fuzzy Control
- Definition: Combines fuzzy linguistic variables with fuzzy logic to create a control system.
- Example: Speed Control (Driving speed depends on the weather).
Fuzzy Control Variables
- Inputs: Temperature ({Freezing, Cool, Warm, Hot}) and Cloud Cover ({Sunny, Partly, Overcast}).
- Output: Speed ({Slow, Fast}).
Fuzzy Control Rules
- Structure: IF-THEN rules using linguistic variables.
- Examples:
- IF it's Sunny AND Warm, drive Fast (Sunny(Cover)
Warm(Temp) Fast(Speed)). - IF it's Cloudy AND Cool, drive Slow (Cloudy(Cover)
Cool(Temp) Slow(Speed)).
- IF it's Sunny AND Warm, drive Fast (Sunny(Cover)

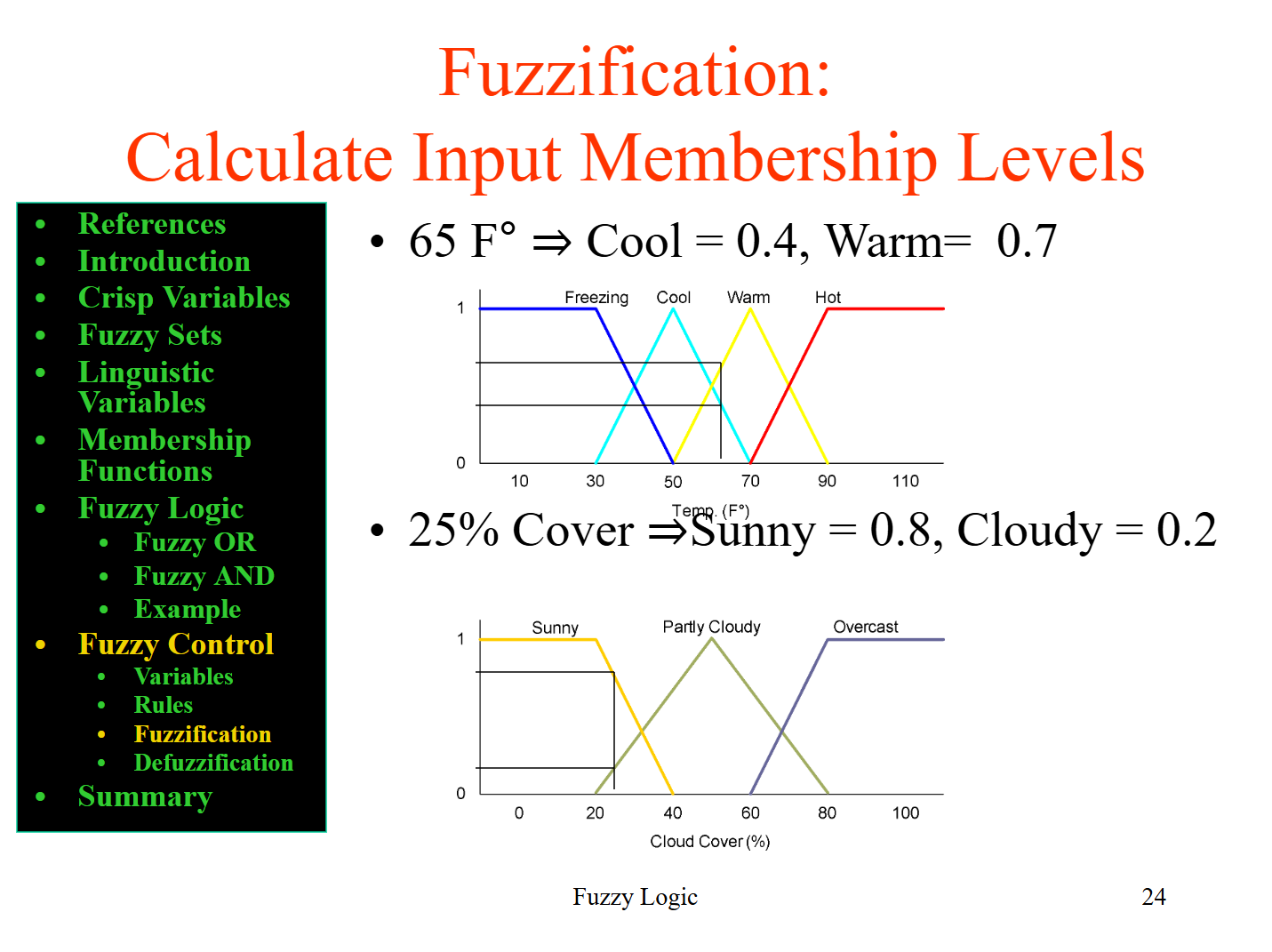

Fuzzification and Rule Evaluation Example
- Scenario: Input is 65 F° and 25% Cloud Cover.
- Fuzzification (Input Membership):
- 65 F°
Cool = 0.4, Warm = 0.7. - 25% Cover
Sunny = 0.8, Cloudy = 0.2.
- 65 F°
- Rule Evaluation (Applying min for AND):
- Sunny
Warm: Fast = 0.7. - Cloudy
Cool: Slow = 0.2.
- Sunny
Defuzzification
- Goal: Convert the fuzzy output (Speed is 20% Slow and 70% Fast) back into a crisp, non-fuzzy output (a specific speed).
- Method: The final speed is calculated using a weighted mean (based on centroids/locations where membership is 100%).
- Result: Speed
.
Notes: Follow-up Points
- Fuzzy Logic Control allows for smooth interpolation between variable centroids with few rules.
- It provides a natural way to model human expertise in a computer program, which is not possible with crisp (traditional Boolean) logic.
Notes: Drawbacks to Fuzzy logic
- It requires tuning of membership functions.
- It may not scale well to large or complex problems.
Fuzzy Logic in Knowledge Bases (Benefits)
- Handles Uncertainty: Ideal for imprecise or uncertain real-world information.
- Closer to Human Reasoning: Mimics how humans make decisions using approximate data.
- Enhances Knowledge Representation: Supports vague concepts like "high temperature" or "low risk."
- Flexibility: Combines qualitative (linguistic) and quantitative (numerical) knowledge.
- Robustness: Supports incomplete or noisy data.
- Transparency: Facilitates rule-based systems using transparent IF-THEN rules.
Application: Fuzzy Logic in Medical Diagnosis System
- Objective: To diagnose illness severity based on fuzzy symptoms (Temperature, Headache, Fatigue).
- Rules Example: IF temperature is High AND headache is Severe AND fatigue is High THEN illness severity is High.
- Why it helps: Medical symptoms are often vague, fuzzy sets allow for overlapping values (e.g., a temperature being both "Normal" and "High" to some degree), and it provides a soft decision (e.g., "Severity leaning towards High") rather than a binary diagnosis.
